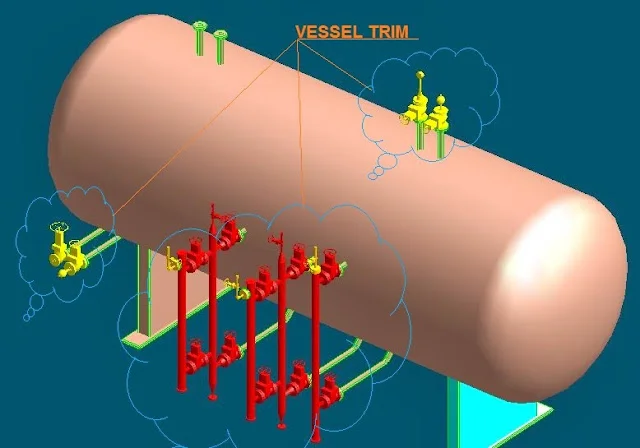

Vessel trims are independent piping and instrument items that are directly attached to a pressure vessel. They are used to display the process parameters inside the vessel and for operation and maintenance purposes.
Some common types of vessel trims include
- Pressure gauges: These gauges measure the pressure inside the vessel.
- Temperature gauges: These gauges measure the temperature inside the vessel.
- Level gauges: These gauges measure the level of the liquid inside the vessel.
- Sampling valves: These valves are used to take samples of the liquid inside the vessel.
- Drain valves: Drain valves are used to drain the liquid from the vessel.
- Vent valves: These valves are used to vent the gas from the vessel.
Vessel trims are the instruments which are connected to vessel for reading the working process parameter of horizontal or vertical vessel. These vessel trims provide the information of utilization capacity of vessel. Some of the vessel trims like temperature transmitter, pressure transmitter links with DCS system for control room operation for reading purpose. In piping we are considering pressure gauge, temperature gauge, potential difference transmitter, Lever gauge, Level bridal, Rota meter, Future connections with valve and blind flange. All these things are removal from the vessel. These are bolted with vessel nozzle with flanged connection.
Vessel Trims accessibility
All these vessel trims be accessible means it’s should be visible for pant operators and isolation valves can be operate by operator at reasonable elevation/height. If the vessel is big in diameter and these vessel trims are mounted on the top of the vessel then access platform, ladder should be provided for operation purpose.
Vessel trims are typically installed during the fabrication of the pressure vessel. They are connected to the vessel with flanged or welded connections. The exact location of the vessel trims is specified on the piping and instrumentation diagram (P&ID).
Vessel trims are important for ensuring the safe and efficient operation of a pressure vessel. They provide operators with information about the condition of the vessel and allow them to make necessary adjustments to the process parameters. Vessel trims also help to prevent accidents by providing a way to monitor the vessel and identify potential problems before they occur.
How vessel trims work
A pressure gauge is installed on a pressure vessel to measure the pressure inside the vessel. If the pressure inside the vessel becomes too high, the pressure gauge will alert the operator so that they can take corrective action. For example, the operator may need to open a relief valve to relieve the pressure or reduce the flow of fluid into the vessel.
A temperature gauge is installed on a pressure vessel to measure the temperature inside the vessel. If the temperature inside the vessel becomes too high, the temperature gauge will alert the operator so that they can take corrective action. For example, the operator may need to increase the flow of cooling water to the vessel or reduce the heat input to the vessel.
A level gauge is installed on a pressure vessel to measure the level of the liquid inside the vessel. If the level of the liquid inside the vessel becomes too high, the level gauge will alert the operator so that they can take corrective action. For example, the operator may need to open a drain valve to remove some of the liquid from the vessel or reduce the flow of liquid into the vessel.
Vessel trims are an important part of any pressure vessel system. They provide operators with information about the condition of the vessel and allow them to make necessary adjustments to the process parameters. Vessel trims also help to prevent accidents by providing a way to monitor the vessel and identify potential problems before they occur.
Other types of vessel trims and how they work
Sight glasses: These glasses allow operators to visually inspect the contents of the vessel.
Sampling ports: These ports allow operators to take samples of the contents of the vessel for analysis.
Instrument connections: These connections allow instruments to be connected to the vessel for monitoring and control purposes.
Isolation valves: These valves can be used to isolate the vessel from the process piping system.
Drain plugs: These plugs allow operators to drain the liquid from the vessel.
Vent plugs: These plugs allow operators to vent the gas from the vessel.
Vessel trims are an important part of any pressure vessel system. They provide operators with information about the condition of the vessel and allow them to make necessary adjustments to the process parameters. Vessel trims also help to prevent accidents by providing a way to monitor the vessel and identify potential problems before they occur.
What important point to considerations when selecting vessel trims
- The process conditions inside the vessel, such as the temperature, pressure, and fluid type.
- The required accuracy and precision of the measurements.
- The frequency of maintenance and calibration.
- The budget.
It is important to select vessel trims that are compatible with the process conditions and that meet the accuracy and precision requirements. The vessel trims should also be easy to maintain and calibrate. Finally, the cost of the vessel trims should be considered when making a selection.
